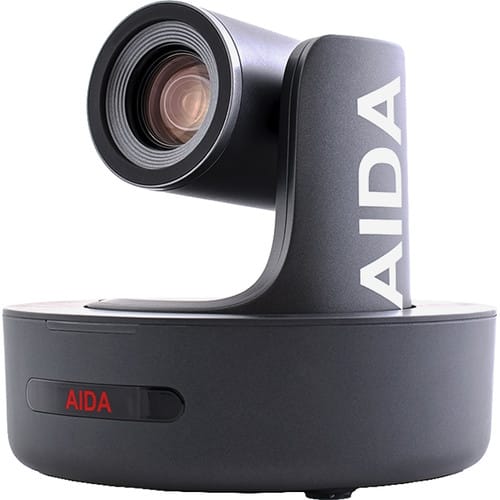

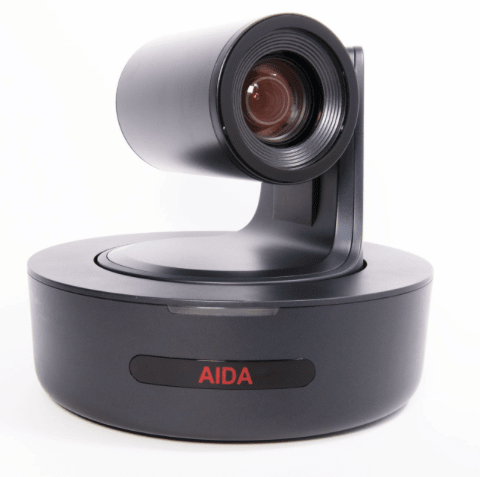

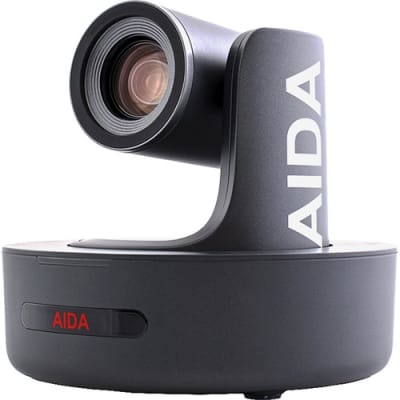

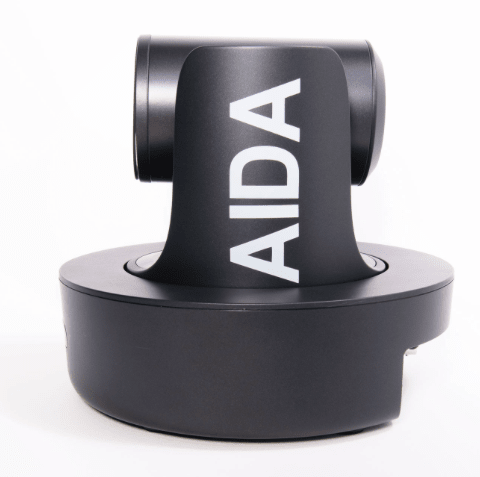

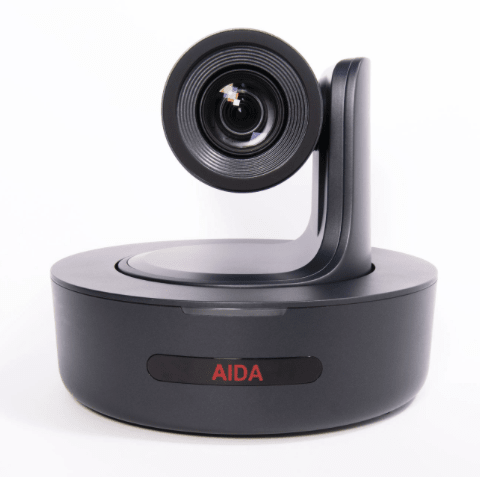

AIDA Imaging Full HD NDI|HX Broadcast PTZ Camera 20x Optical Zoom1
AIDA Imaging Full HD NDI|HX Broadcast PTZ Camera 20x Optical Zoom2
AIDA Imaging Full HD NDI|HX Broadcast PTZ Camera 20x Optical Zoom3
AIDA Imaging Full HD NDI|HX Broadcast PTZ Camera 20x Optical Zoom4
AIDA Imaging Full HD NDI|HX Broadcast PTZ Camera 20x Optical Zoom5

AIDA Imaging Full HD NDI|HX Broadcast PTZ Camera 20x Optical Zoom Cámara PTZ

AIDA
$ 1.420.000

Las cámaras PTZ son el pan de cada día de las tomas de producción dinámicas en vivo. No importa dónde se coloque la PTZ, esta cámara lo verá todo. Equipada con un zoom óptico de 20x, la PTZ-NDI-X20 tiene una gran cantidad de funciones de cámara, que van desde el control de la cámara hasta las salidas Full-HD simultáneas y NDI|HX. Esta cámara fue diseñada para aplicaciones de transmisión, salas de reuniones o lugares de culto. Cuando se trata de que la PTZ-NDI-X20 esté a la altura, podemos garantizarle que funcionará.

Caracteristicas tecnicas

Image Sensor1/2.5″ Progressive CMOS
Effective PixelsHorizontal: 1920, Vertical: 1080
Pixel Size2.13 µm x 2.13 µm
Resolution1080p & 1080i: 1920 x 1080
Resolution | Rate108060p/59.94p/50p/30p/29.97p/25p/24p/23.98p
1080 60i/59.94i/50i
720 60p/59.94p/50p/30p/29.97p/25p
IP Rate1920 x 1080 @ 1~60
1280 x 720 @ 1~60
1024 x 576 @ 1~60
620 x 360 @ 1~60

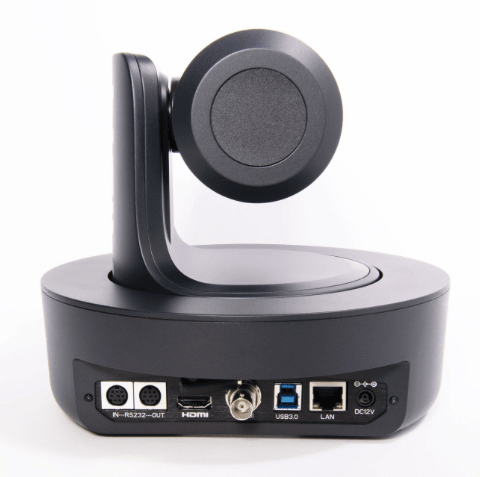

OutputHD-SDI/3G-SDI
HDMI
RTSP / RTMP / NDI®|HX
USB 3.0 & 2.0
Color Space4:2:2 (YCbCr) 10bit
Min. Illumination0.1Lux
White BalanceAuto, Manual, Auto Tracking, One Push, Indoor, Outdoor
FocusAuto, Manual
Shutter Speed1 to 1/10,000 Sec.
Lens20X HD Optical Zoom, F1.5 ~ F3.0
Pan, Tilt :RangePan: 340°,
Tilt: +90 to -30°
Pan, Tilt :SpeedPan: 0° to +120°/s
Tilt: 0° to +80°/s
Presets128 Positions
Field of View61°
SMPTESMPTE 292M, SMPTE 424M
IP ProtocolTCP|IP, RTSP|RTMP
Input3.5mm TRS Stereo Audio Port
Sample Rate16/24/32 Bits
Camera ControlProtocol: VISCA Interface: RS-232C IN & OUT, RJ-45 Remote Controller
Operation Temp32° F – 104° F
Dimension155mm x 160m x 170mm / 6.10″ x 6.92″ x 6.69″
Weight1.35kg / 2.97lbs
Power12VDC (+9 – +15VDC) PoE+ (IEEE802.3at Standard Required)
