Marshall Electronics CV605 Compact 3G-SDI/IP PTZ Camera with 5x Optical Zoom (Black)4
Marshall Electronics CV605 Compact 3G-SDI/IP PTZ Camera with 5x Optical Zoom (Black)1
Marshall Electronics CV605 Compact 3G-SDI/IP PTZ Camera with 5x Optical Zoom (Black)2
Marshall Electronics CV605 Compact 3G-SDI/IP PTZ Camera with 5x Optical Zoom (Black)3

Marshall Electronics CV605 Compact 3G-SDI/IP PTZ Camera with 5x Optical Zoom (Black) Camara PTZ

Marshall
$ 930.000

La cámara 3GSDI con zoom óptico 5X CV605 utiliza un sensor profesional de 2 megapíxeles para capturar videos HD nítidos desde un gran ángulo de 85° y una resolución de hasta 1920x1080p a 60 fps. Múltiples salidas disponibles incluyen 3GSDI e IP (H.265/H.264). El diseño sencillo y la facilidad de uso de Marshall hacen de esta cámara una cámara asequible para una amplia variedad de aplicaciones audiovisuales profesionales y de transmisión. CV605-BK/WH se puede configurar a través de la configuración de un cable a la cámara que utiliza un cable Ethernet (CAT) para transportar energía, video, audio y control a través de IP.

Caracteristicas tecnicas

Image Sensor

1/2.8"-Type CMOS

Sensor Resolution

Effective: 2 Megapixel

Shutter Type

Electronic Rolling Shutter

Shutter Speed

1/10000 to 1/25 Second

Optical Zoom Ratio

5x

Max Digital Zoom

10x

External Recording Modes

SDI/BNC / RJ45
1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 25/29.97/30.00/50/59.94/60.00 fps

Show More

Broadcast Output

NTSC

IP Streaming

H.264, H.265, ONVIF, RTMP, RTSP
1920 x 1080
1280 x 720
640 x 480
640 x 360
320 x 240
320 x 180

Show More

Supported Control Protocols

RS-232
VISCA

PoE Support

PoE 802.3af

Mounting

1x 1/4"-20 Female

Exposure Control

Shutter Type

Electronic Rolling Shutter

Shutter Speed

1/10000 to 1/25 Second

Signal-to-Noise Ratio

55 dB

Minimum Illumination

0.5 Lux

Flip / Mirror Support

Image Flip, Mirror (Vertical)

White Balance

Presets: Auto, Manual, One Push

Lens

Focal Length

3 to 15.5mm

Optical Zoom Ratio

5x

Max Digital Zoom

10x

Field of View

85 to 16°

Maximum Aperture

f/1.8 to 11

Video Capture

External Recording Modes

SDI/BNC / RJ45
1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps
1920 x 1080i at 50/59.94/60.00 fps
1280 x 720 at 25/29.97/30.00/50/59.94/60.00 fps

Audio Recording

AAC Audio
G.711 Audio

Broadcast Output

NTSC

IP Streaming

H.264, H.265, ONVIF, RTMP, RTSP
1920 x 1080
1280 x 720
640 x 480
640 x 360
320 x 240
320 x 180

Control

Presets

255 via RS-232
10 via IR

Move Speed

Pan: 1 to 60°/sec
Tilt: 1 to 30°/sec

Movement Range

Pan: 270° (-135 to 135°)
Tilt: 60° (-30 to 30°)

Tally Light

No

Supported Control Protocols

RS-232
VISCA

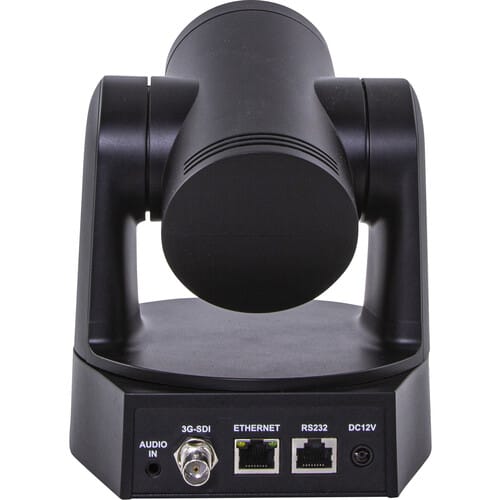

Interface

Video I/O

1x BNC (3G-SDI) Output
1x RJ45 Output

Audio I/O

1x 1/8" / 3.5 mm TRS Stereo Mic/Line Input

Other I/O

1x RJ45 (RS-232) Input

Built-In Speaker

No

Power

PoE Support

PoE 802.3af

Power I/O

1x Barrel (12VDC at 1 A) Input

Power Consumption

Device: 110 to 220 VAC at 1.5 A (12 W)

Environmental

Operating Temperature

14 to 122°F / -10 to 50°C

Storage Temperature

14 to 140°F / -10 to 60°C

Operating Humidity

20 to 80%

Storage Humidity

20 to 95%

General

Mounting

1x 1/4"-20 Female

Certifications

FCC Part 15 Class A

Dimensions (W x H x D)

5.7 x 6.1 x 5.8" / 145.4 x 154 x 147 mm

Weight

2.8 lb / 1.27 kg

Packaging Info

Package Weight

4.98 lb

Box Dimensions (LxWxH)

10.5 x 10.2 x 9.2"

Para mas información:

http://www.marshall-usa.com/cameras/CV605-BK-WH/


También Podría Interesarte

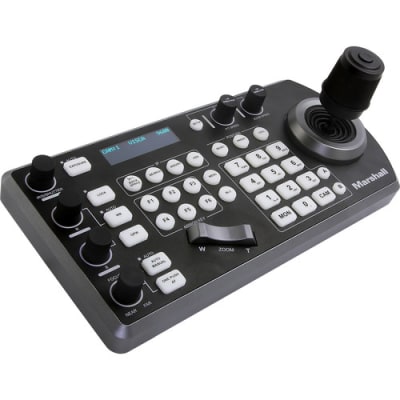

Marshall Electronics VS-PTC-IP IP PTZ Camera Controller
